KSCAN-X

KSCAN-X

Benefits of device

  • Wireless operation for flexible field measurements
  • Fast and smooth scanning in harsh environments
  • Large scanning area for large parts
  • High accuracy with adaptive photogrammetry
  • Wide field of view for efficient scanning
Send query Download Datasheet

Description

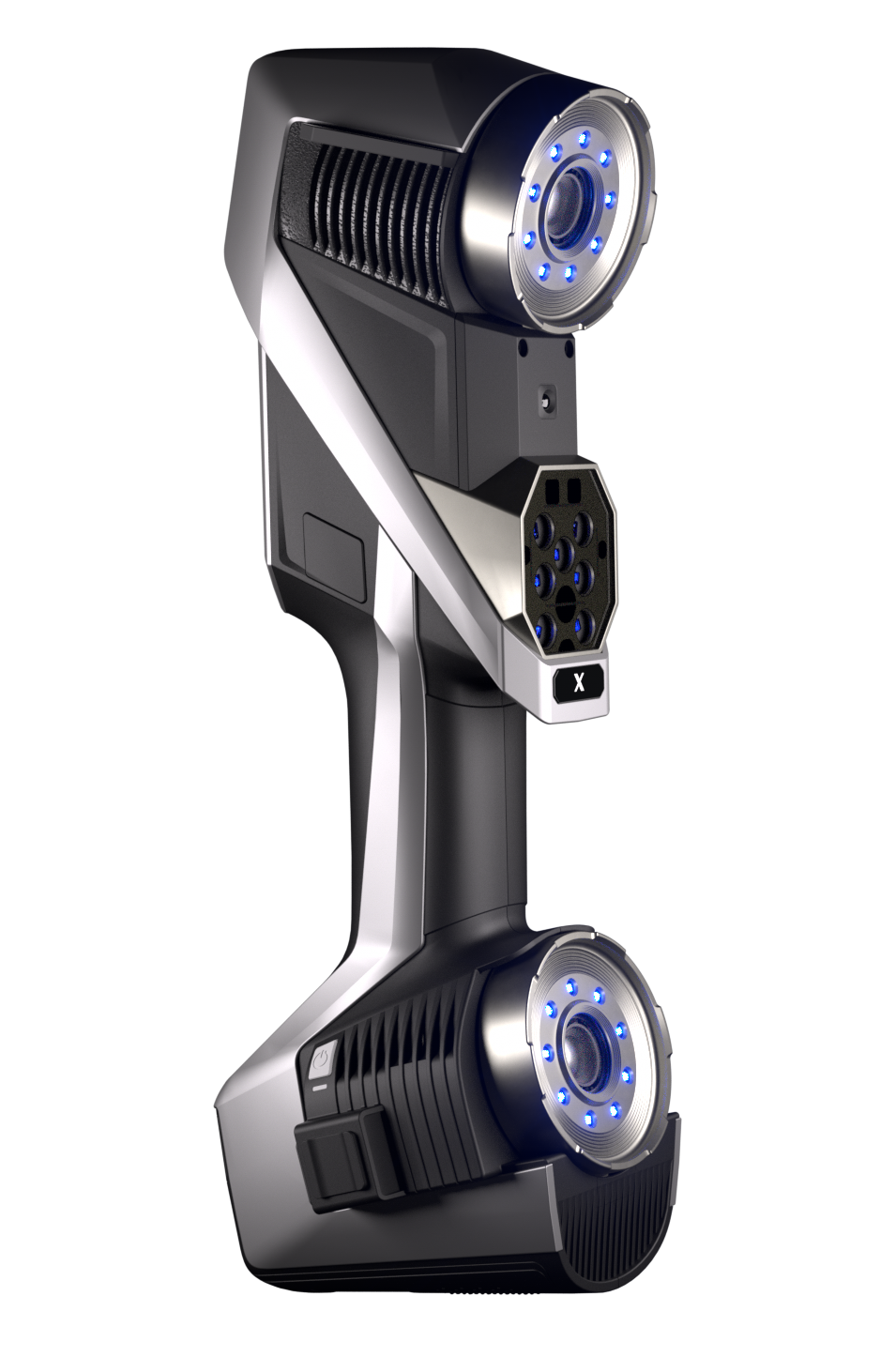

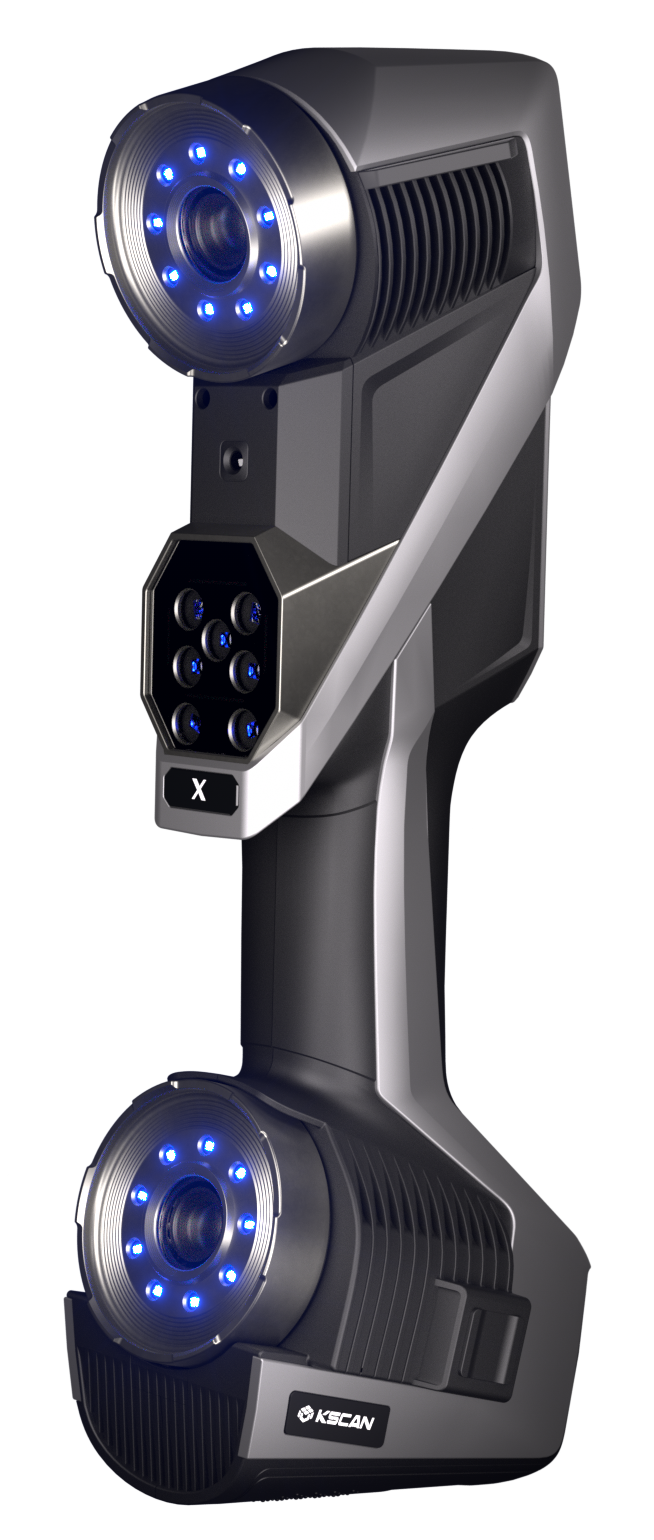

The KSCAN-X, with its cutting-edge wireless technology and adaptive photogrammetry, is an intelligent wireless 3D scanner for large-scale applications that sets a new benchmark in industrial 3D measurement. With wireless mobility, a wide scan range, deep field depth, and rapid scanning, the KSCAN-X enables smooth, precise 3D capture for ultra-large and medium to large parts in aerospace, heavy industry, and rail sectors. Built to enhance productivity and ensure reliable quality checks, the KSCAN-X stands out as the top-tier tool for modern manufacturing needs.

Extra-Large Scanning Range

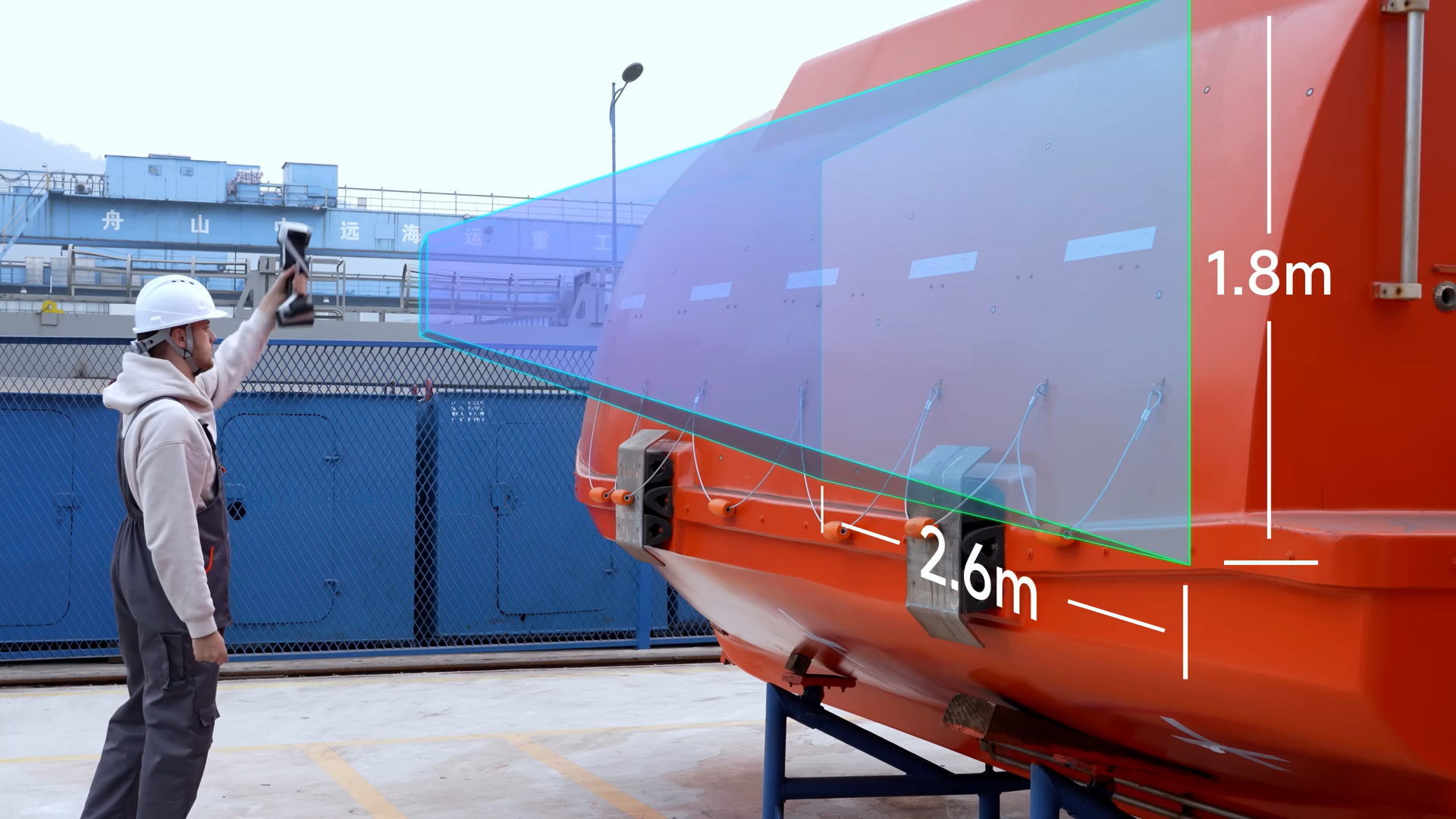

Equipped with advanced proprietary algorithms, the KSCAN-X delivers a generous scanning area of up to 2.6m × 1.8m, making it perfectly suited for capturing ultra-large components with ease.

Extended Depth of Field
With an impressive depth of field from 0.3 to 2.5 meters, the KSCAN-X guarantees high-accuracy measurements across a wide range of part sizes—from medium to ultra-large. Its adaptable working distance enhances flexibility and efficiency when scanning objects of varying dimensions.

System applications

  • Aerospace – scanning large aircraft parts for quality control and reverse engineering
  • Automotive – inspecting and reverse engineering large vehicle components
  • Railway and Shipbuilding – scanning train carriages and ship hulls for maintenance and design
  • Mold Manufacturing – creating and inspecting large molds with high accuracy

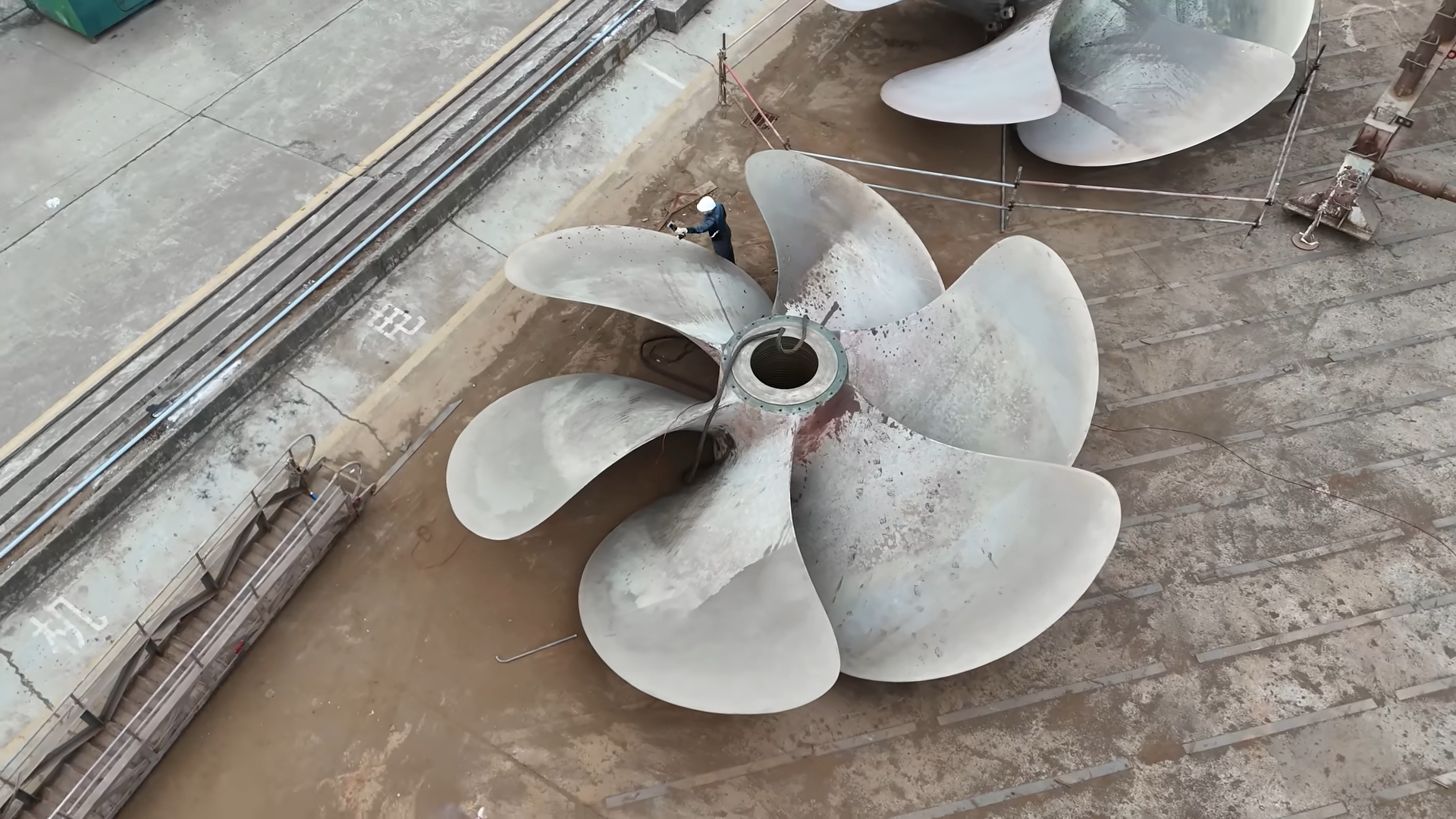

  • Energy and Heavy Industry – scanning turbines, pipelines, and heavy machinery for quality assurance

Technical specifications

KSCAN-X
Scan mode Large FOV scanning 84 blue laser lines
Medium-distance scanning 54 blue laser lines
Deep hole scanning 1 extra blue laser line
Accuracy [mm] Medium-distance scanning 0,03
Large FOV scanning 0,075
Volumetric accuracy(1)(2) 0.075 mm + 0.010 mm/m
Scanning rate up to 6,450,000 measurements/s
Scanning area up to [mm] 2600 × 1800
Working distance [m] 0,30  ~ 2,50
Object size [m] 0,5 - 15
Laser class ClassⅡ (eye-safe)
Resolution up to [mm] 0,01
Dimension [mm] 344 × 124 × 99
Stand-off distance [mm] 235
Connection - Wireless standard Wi-Fi 6，802.11a/b/g/n/ac
Operating temperature range 10℃ ~ 40℃

(1) ISO 17025 accredited: Performance is evaluated based on JJF1951 specification, VDI/VDE 2634 Part 3 standard.

(2) Paired with 800-mm high-precision scale bar.
