SmartScope E-Series

Benefits of device

3D Multisensor measuring system
Easy to use software
Sturdy, stable construction
Measuring system at an affordable price

Download Datasheet

Description

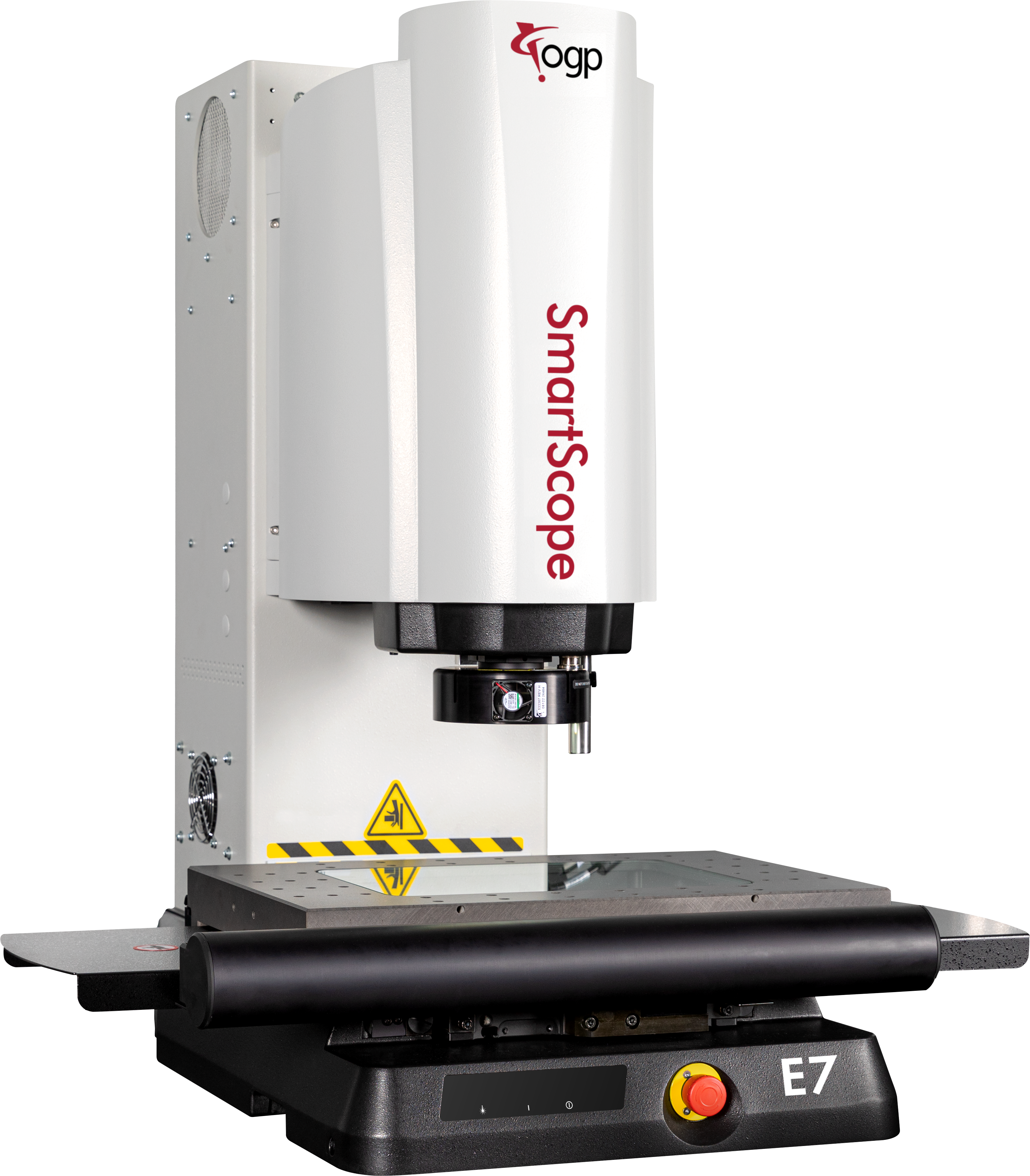

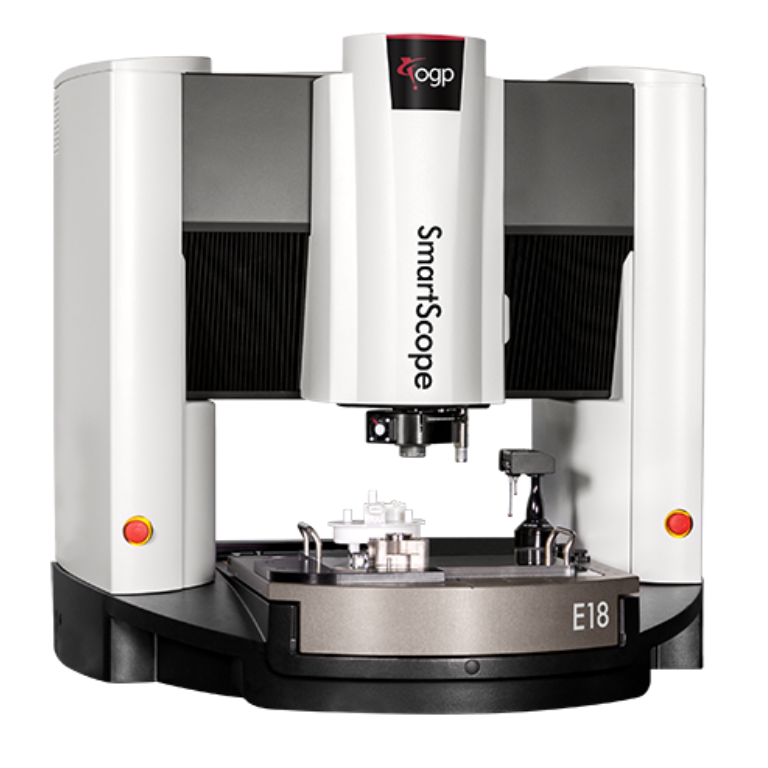

The SmartScope E Series measuring system is equipped with an innovative IntelliCentric™ optical system providing a sharp, high-resolution image even at low magnification. In combination with digital magnification, the system is able to measure with great accuracy even without moving the table. The device works with bottom, axis and programmable ring lighting to capture different types of surfaces from all angles.

The SmartScope E can be equipped with a TP20 and TP200 touch probe and a rotary axis, making it ideal for a wide range of applications.

Measure-X measurement software offers a wide range of programmable measurement, including different types of evaluation, in a user-friendly environment. The program can be supplemented with other tools, such as image processing, automatic focusing, automatic data sending, contour evaluation or addition of ANSI/ISO tolerances, thus creating a fully functional software meeting various requirements.

The device is produced with a range of 250 mm x 150 mm x 150 mm with the possibility of extending the X axis to 300 mm.

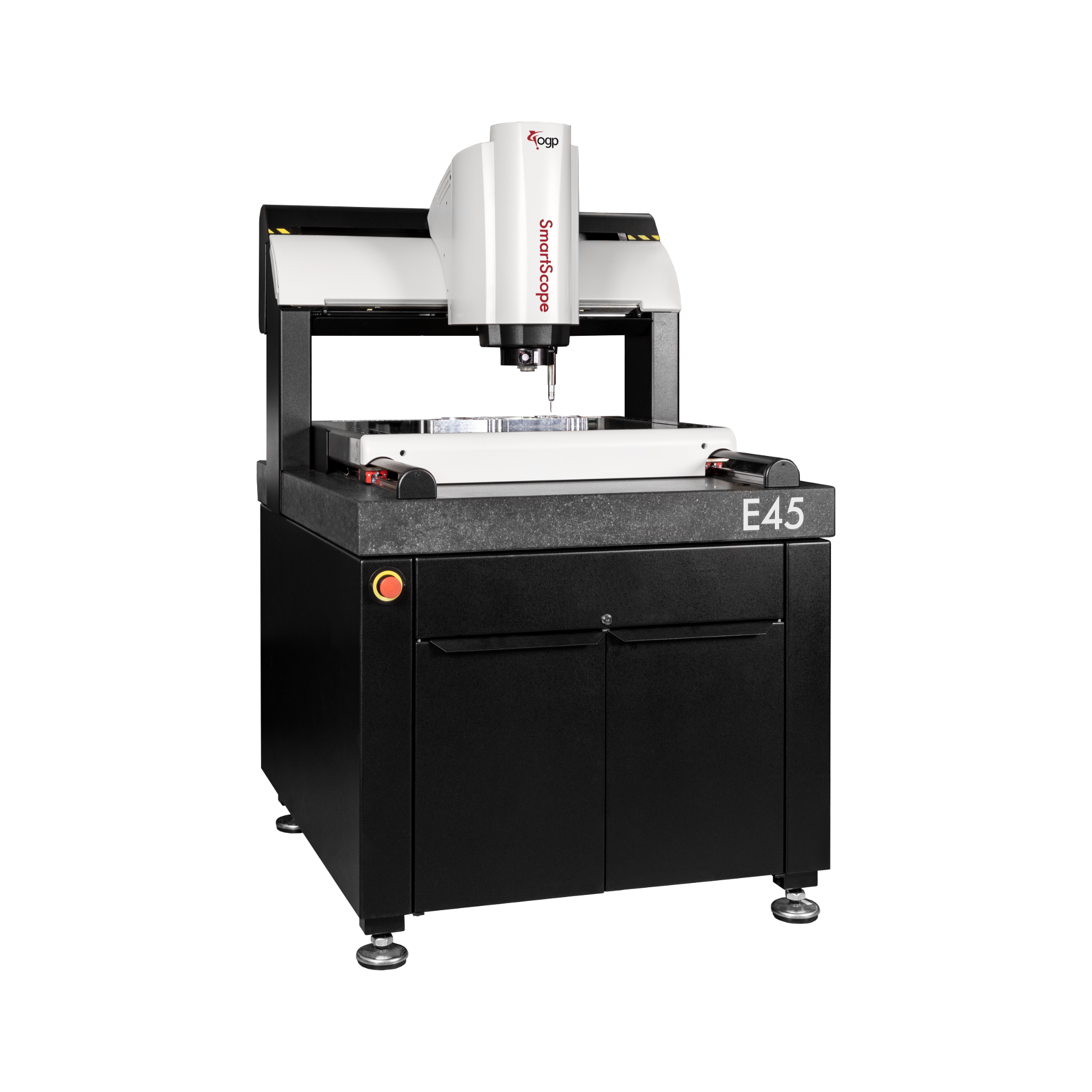

E45

Probes and Accessories

Touch probe

Rotary Indexers

System applications

Engineering - Measuring machined parts, cast-forged parts, welded parts and extruded parts of different shapes and sizes.
Automotive industry - OGP multi-sensor measurement systems offer the CAD integration, throughput and shop floor reliability to enable rapid innovation year after year.
Plastics - It’s a real challenge to effectively manage quality control in plastics manufacturing. Automated, non-contact video-based measuring systems from OGP allows for reliable, fast and effective measurement.
Energy - One area of renewable energy that is seeing tremendous growth is Solar. The manufacturing of solar panels requires extremely precise measurements.
Aerospace, chemical industry, innovation and development...

Technical specifications

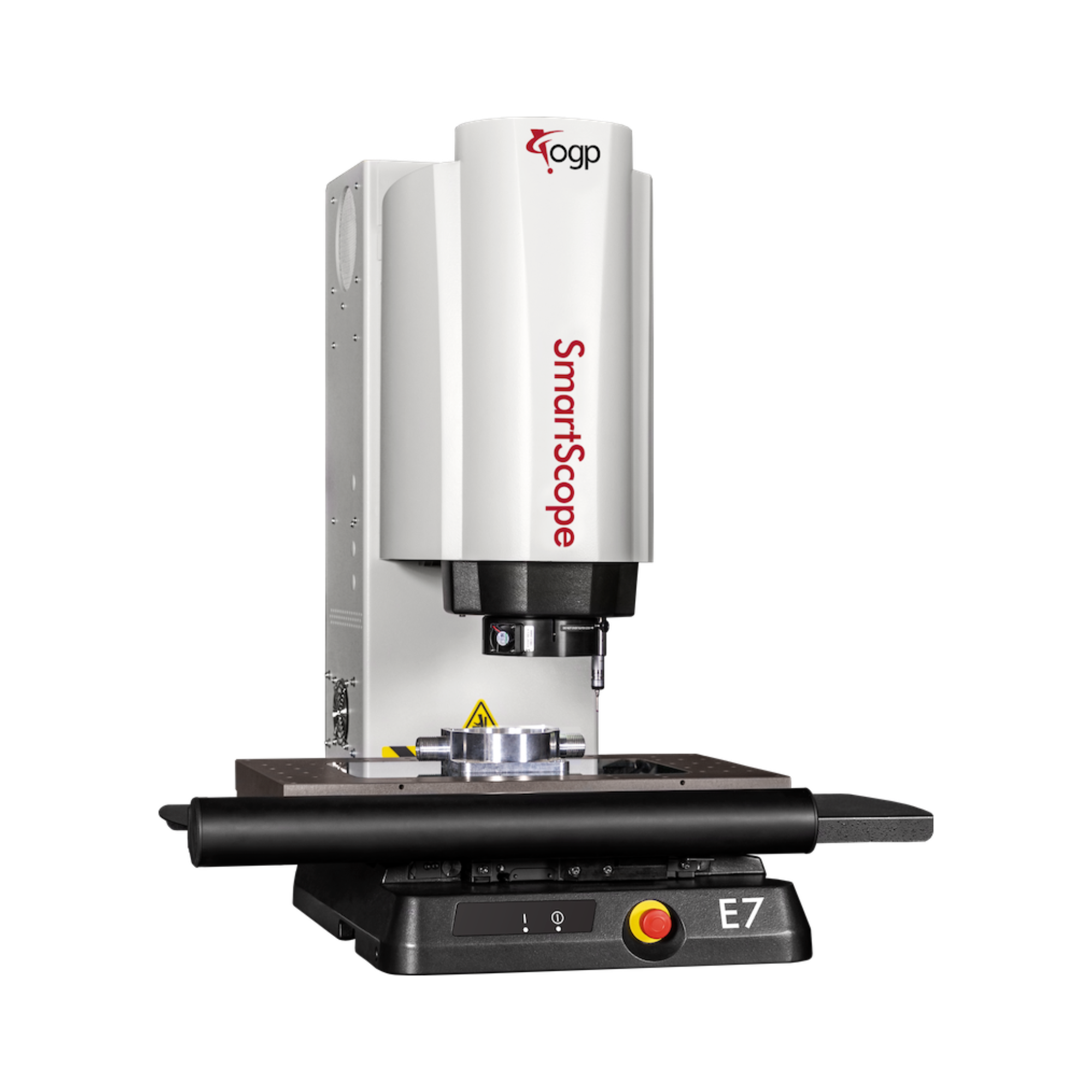

SmartScope	E7	E45
Machine Range XYZ [mm]	250(300)x150	500x450(610)
Machine Range Z [mm]	200	200(300)
Accuracy XY [µm]	2,2+5L/1000	2,8+5L/1000
Accuracy Z (optical measurement) [µm]	3,8+5L/1000 (2,8+4L/1000)¹	3,8+5L/1000 (2,8+4L/1000)¹
Sensor resolution [µm]	0,1	0,1
Weight (approximate) [kg]	165	960
Load capacity [kg]	25	65
Optional touch sensors	TP20/200	TP20/200

*L is the measured length in millimeters Accuracy depends on the choice of sensor and environment conditions.

¹Accuracy of Z axis when using 2.0x lens.

Software

Measure-X

Measure-X metrology software is the ideal choice for anyone looking for a versatile measurement tool that is easy to use and can handle even demanding shape or contour analysis. Whether you use optics, touch probes, or lasers, this software provides you with accurate results.

Simple Programming – Working in Measure-X is intuitive, and you’ll master it in no time. You can measure and view results in real-time directly in the live video window. The toolbox is logically designed with large, clearly identifiable icons, giving you instant access to all measurement, construction, and analysis functions.

Measure – Simply place the part on the stage, and start measuring with one click. SNAP-X software scans the image and Feature Extracts all discernible features. The results can be viewed with no further action, or the features can be turned into measured steps for a program.

Analyze – Gives users the ability to address more complex GD&T requirements such as profile or true position. The display and reporting capabilities provide both graphical, color coded whiskers of deviation, and GD&T callouts on the part CAD.

Compare – Compare the live video image to the CAD overlay as with an optical comparator, but with much greater resolution. Color coded tolerance bands help to identify if a part is within tolerance.
