Benefits of device

  • Fully automatic 3D laser scanner
  • Measuring complex shaped parts
  • Measuring parts up to diameter of 400 mm, up to 800 mm long
  • No need for software alignment
  • Data capture is not dependent on the operator
  • The software enable work with 3D model and GD&T evaluation

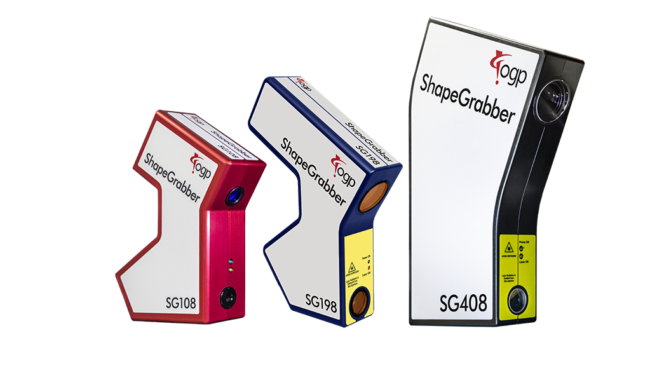

ShapeGrabber 3D Laser Scanning systems deliver fast, accurate and automated 3D measurement. The ShapeGrabber is ideal for measuring complex shapes such as molded plastics, castings, stampings, and machined parts and that are time-consuming, costly, and difficult to measure. Using multiple motion axes, ShapeGrabber laser scanners eliminate the need for software alignment and registration and ensure fast, accurate results.

ShapeGrabber automated scanners are well suited for situations in which speed and ease of use are important. These systems scan parts in a wide variety of materials, colors, and finishes and excel in rapid prototyping, manufacturing, quality control, and reverse engineering applications.

All ShapeGrabber 3D Laser Scanning systems share the ability to produce detailed surface characterizations of complex parts, quickly, and accurately. They are all easily programmed for repetitive part measurements, with no need for software alignment and registration. All ShapeGrabber systems collect accurate, high density point data, and provide reports of results, including GD&T.

ShapeGrabber systems are available in three models to match part size and configuration.

System applications

  • Quality control

Comparison of scanned data with a nominal 3D model.

  • Shape analyze

Recognition and solution of structural and functional defects of the scanned object.

  • Reverse engineering

Conversion of scanned data into 3D model.

  • Prototyping

Quickly create a model from scanned data.

Technical specifications

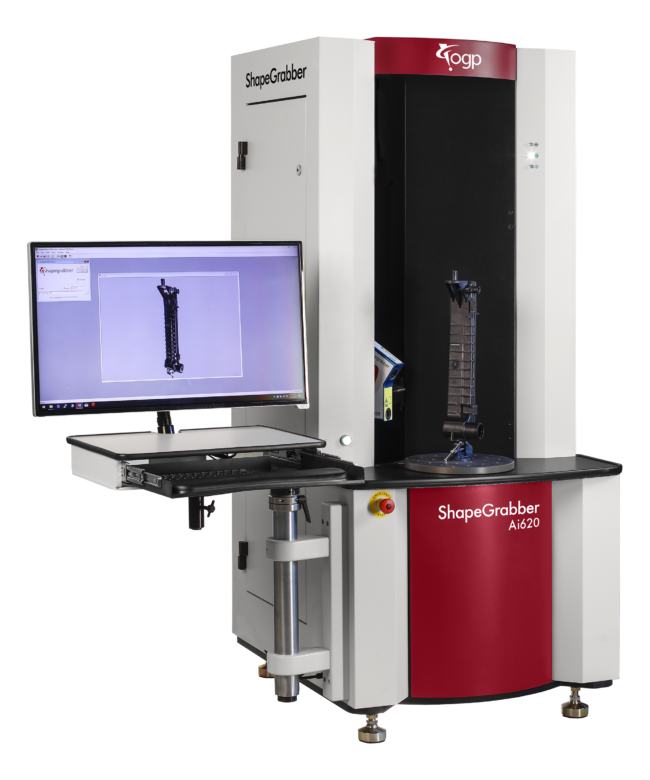

ShapeGrabber Ai320 Ai620 Ai820
Maximum part size [mm] D 100 x 300 D 185 x 600 D 415 x 750 (415 x 1200 x 355)
Single Scan 3D Accuracy [µm] 6+L/100 15+L/100 50+L/20
Rotary table motion 360° 360° 360°
Multi-Scan Position Error (with rotary) [µm] 10 15 -
Tilt Adjustment (optional) 25° 25° -
Multi-Scan Position Error (with optional tilt axis) [µm] 5 25 -
Depth of Field 100 185 415
Maximum Worktable Load [kg] 20 80 100
Data rate [pts/s] 155,000 až 1,500,000
Software Polyworks, Geomagic, SGCapture
System Weight [kg] 150 400 725

*L is measured length in mm
