Benefits of device

  • Automatic laser scanning system for assessing surface structure
  • Includes camera for finding parts and 2D measurement
  • Evaluation of surface topography
  • Z tracking that keeps laser within its capture range
  • Elevating bridge provides for large working area

Description

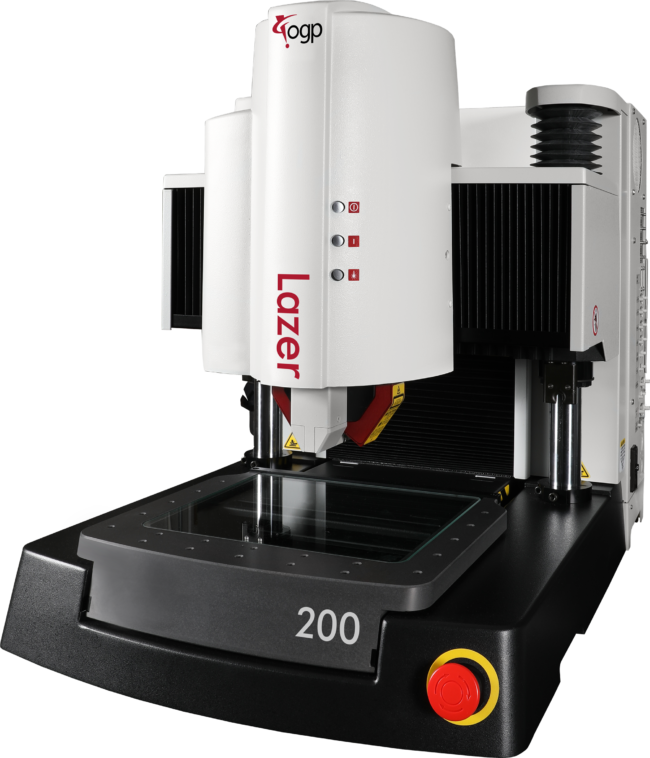

The Lazer 200 is an innovative non-contact measuring system that uses laser scanning and video support for surface topography measurements.

The Digital Range Sensor (DRS™) laser delivers high quality non-contact laser scans of critical part surfaces.Chassis axial straightness and perpendicularity are machined in Z-axis travel keeps the DRS laser within its capture range throughout the scanIntegral on-axis video imaging is used to locate the part, set datums, and choose laser scan start and stop points


Probes and Accessories


Technical specifications

LAZER  200
XY Machine Range [mm] 200 x 200
Z Machine Range [mm] 100
Accuracy Z  [µm] 1,5+5L/1000
Weight [kg] 100
Maximum workpiece weight [kg] 16

*L is the measured length in millimeters


Software

ZONE3

Advanced control and evaluation software for working with OGP measuring systems. Software with a modern interface and wide range of implemented functions, including working with a 3D CAD model and with the possibility of operator view, where users with only minimal training can securely launch and run programs.

  • Manage all types of sensors in the same software program
  • Automatically generated scanning trajectory to make it easier to create a measuring program
  • Program optimization based on position on the machine, scan sensor and zoom
  • ISO and ASME evaluation
  • Evaluation of advanced elements – screw threads, gears, roughness
  • Advanced work with variables
  • Supports all standard CAD model format including PMI



Versions:

Express – contains all characteristics, commonly used scanning tools, basic geometric tolerances, and 2D model support

Prime – contains all Express properties as well as advanced scanning tools, advanced geometric tolerances,conditions and cycles, 3D models, and customizing protocol headers

Pro – contains all Express and Prime properties as well as screw thread and gear assessment, PMI (model which carries data about dimensional geometrical tolerances) support, semiautomatic creation of programs using 3D models

Offline – version for creating programs without a measurement machine Contains all Pro functions

ZONE3 is standard on FUSIONFlexPointSmartScope Flash & CNCSmartScope VantageSmartscope SPSmartscope ZIPLazer and available on SNAP.
