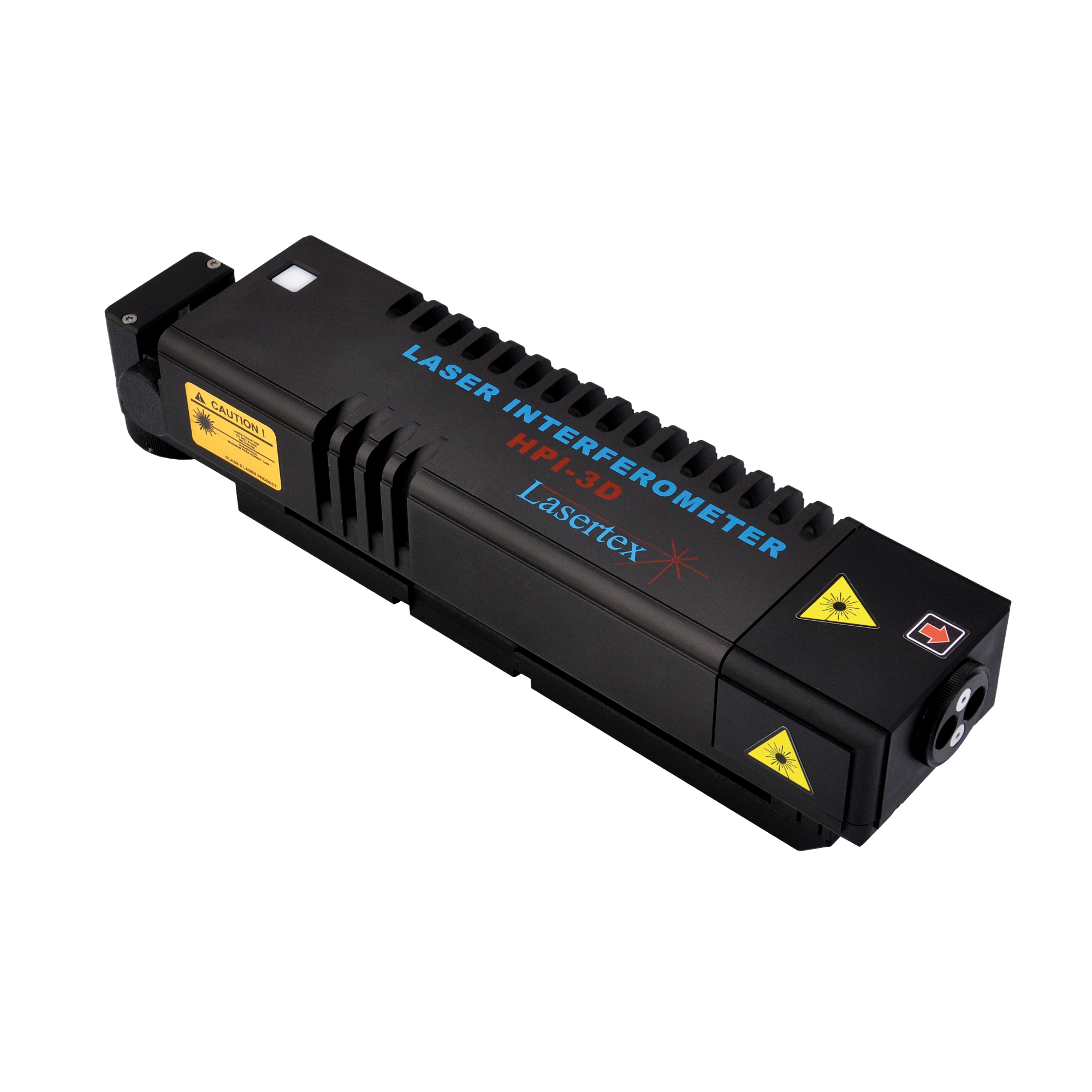

The HPI-3D interferometer from Lasertex is very accurate measuring device and is most often used to calibrate measuring equipment and machine tools or for length measurements. It can measure long distances (in the double digits of meters) or extremely short distances (in the hundreds of picometers). It detect extremely fast or extremely slow movements, monitor vibrations, measure angles, compare distances, and test straightness, flatness, right angles and many other parameters.
The laser is suitable for use in scientific laboratories, machining halls and outside areas. Its compact size means you can carry it with you in a handheld case.
The system includes a laser head, optics for linear measurement, sensors for environmental compensation and a computer with software. This standard equipment is sufficient for most basic applications. If necessary, it is possible to add components for measuring perpendicularity, flatness or for accurate measurement of the positioning of rotary axes.
|Laser type||He-Ne laser with frequency stabilization|
|Wavelength accuracy||± 0,005 ppm|
|Maximum velocity||± 7 m/s (20 m/s)|
|Preheat time||< 5 min|
|Temperature range||0-40 °C|
|Measuring vibration||Up to 100 KHz|
|Compensation of environmental
|Real time compensation with wireless sensors
1x air temperature, humidity and pressure sensor
3x material temperature sensor
|Weight||1200 g – laser head
500 g – power supply
|Distance||0-40 (40-80) m||0,0001 µm||0,41 µ/m|
|Velocity||0-7 m/s||0,25 µm/s||±0,01 % µm|
|Angular||0-3600 arcsec||0,001 arcsec||±0,1 ppm|
|0-15 m||0,01 µm||±0,2 % µm|
|0,3-9 m||0,01 µm||±0,5 % · L µm|
|0-6 m||0,1 µm||(5 + 5 · L) µm|
|Flatness||0-15 m||0,01 µrad||±0,2 % µm|
|Squareness||±1000 arcsec||0,01 µm||±0,5 arcsec|
* L – the distance between optical components in [m]
