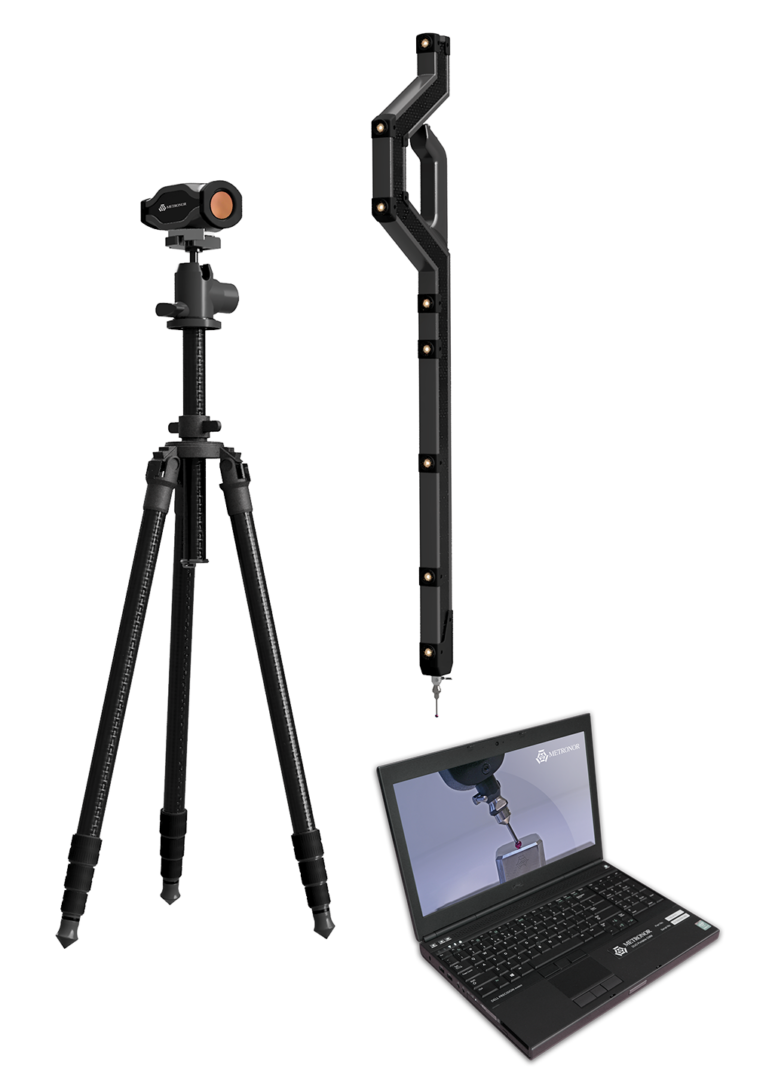

Metronor SOLO

Metronor SOLO

Benefits of device

  • Handheld and portable 3D optical CMM
  • Measuring up to 25 meters from camera
  • Wide range of applications
  • Compact and portable system
  • Comparison geometry with CAD data

Send query Download Datasheet

Description

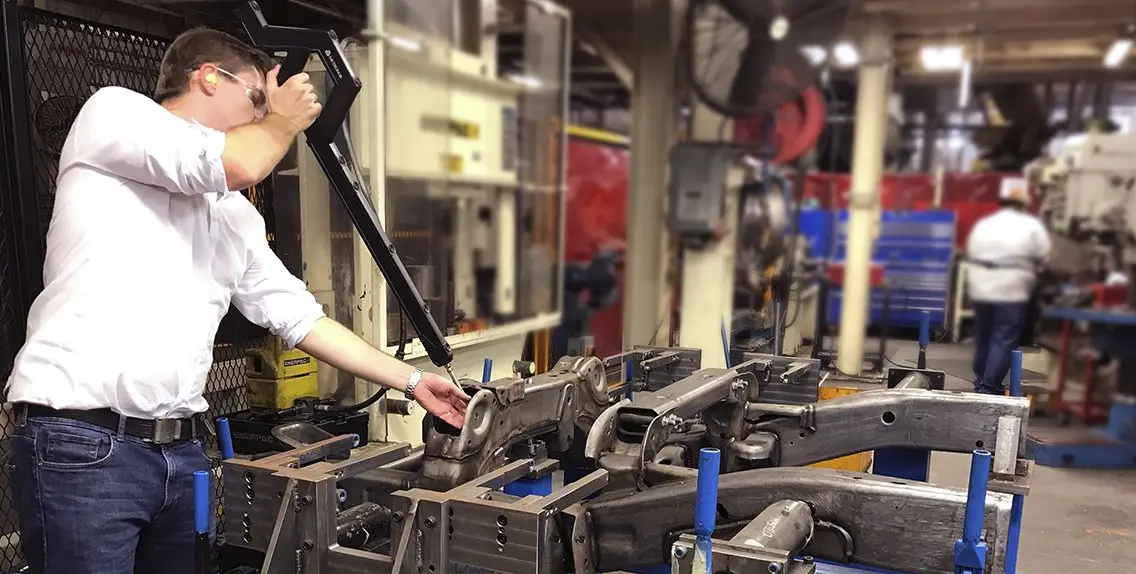

Metronor SOLO Probe system is a flexible and cost-efficient solution for a wide variety of applications. The wireless handheld probe is easy to use and measures features hidden from view thanks to the deep-probing capabilities of the Metronor Lightpen.

Fast to learn and very durable, SOLO Probe measures up to 25m from the camera (longer with available options) and is unique in offering excellent probing in larger measurement volumes.

Metronor SOLO offers full CMM capability, including comparison of just about any geometry to CAD data or blueprint.

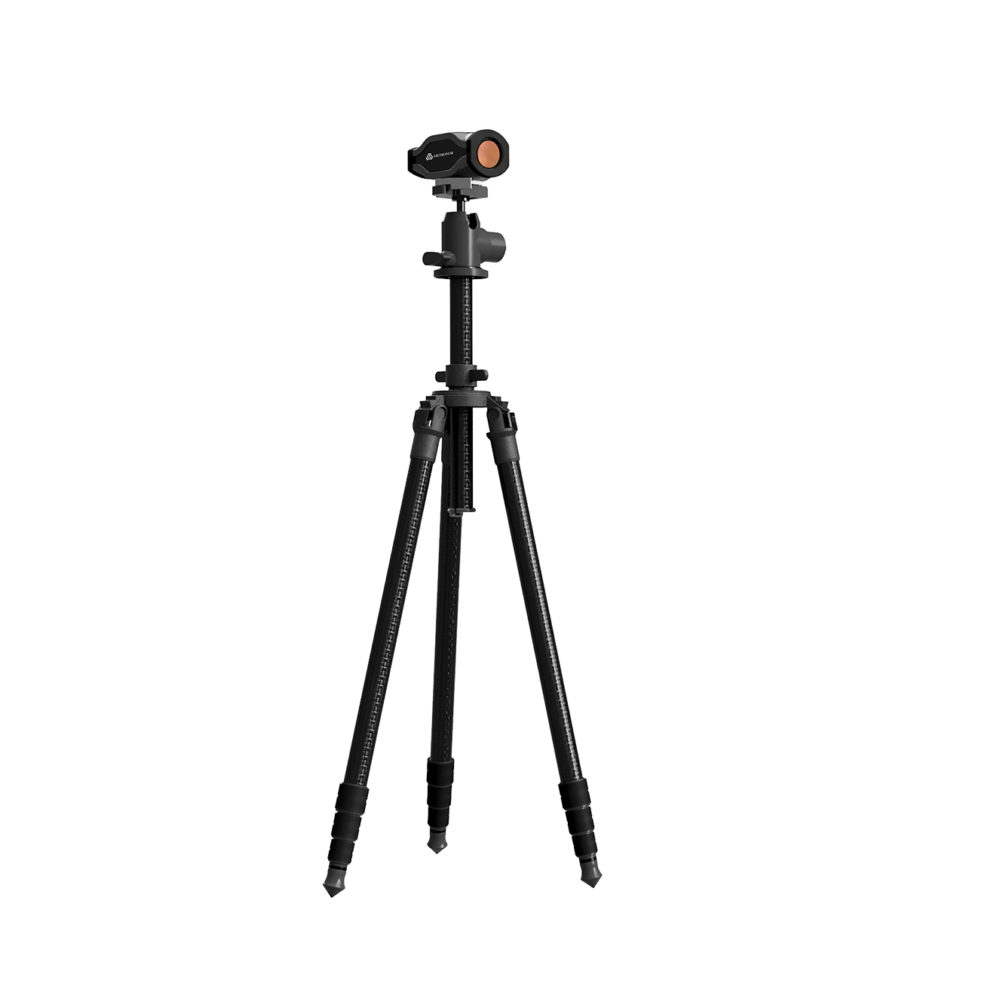

Camera and tripod

Camera and tripod

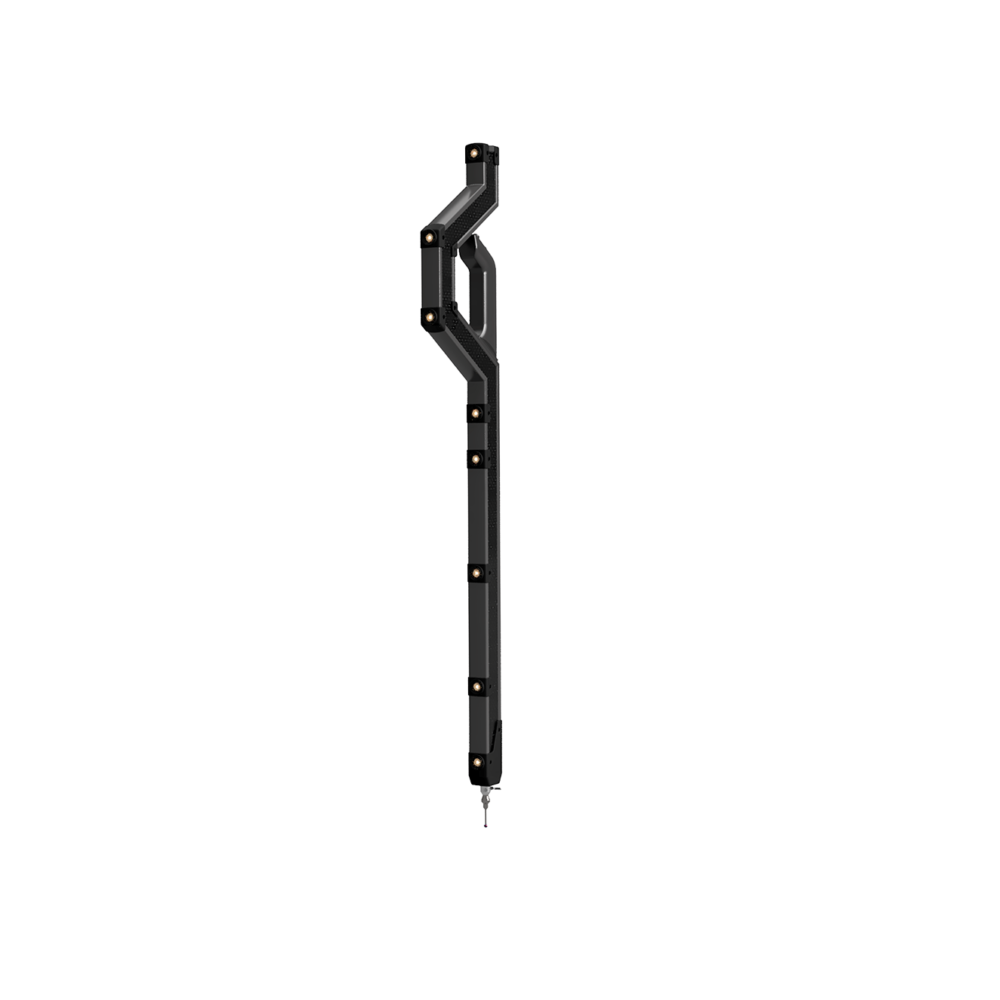

LightPen

LightPen

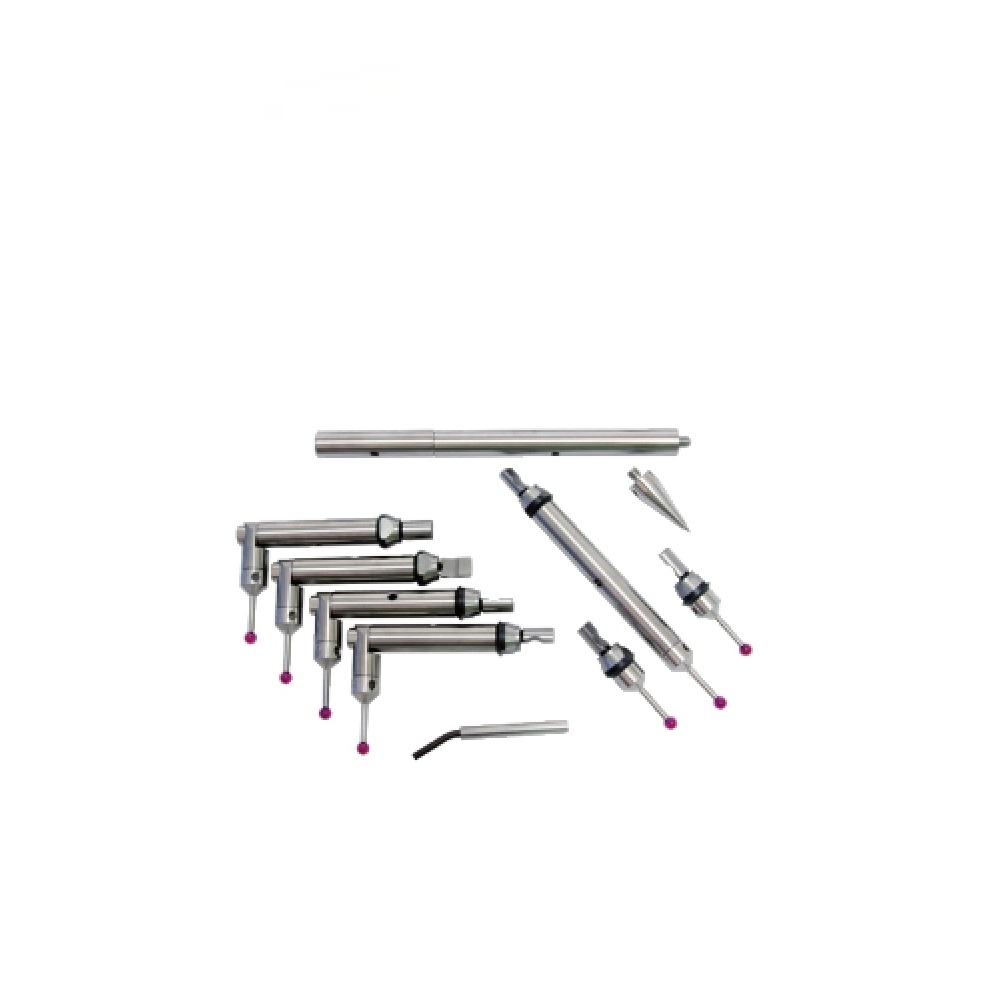

Probes

Probes

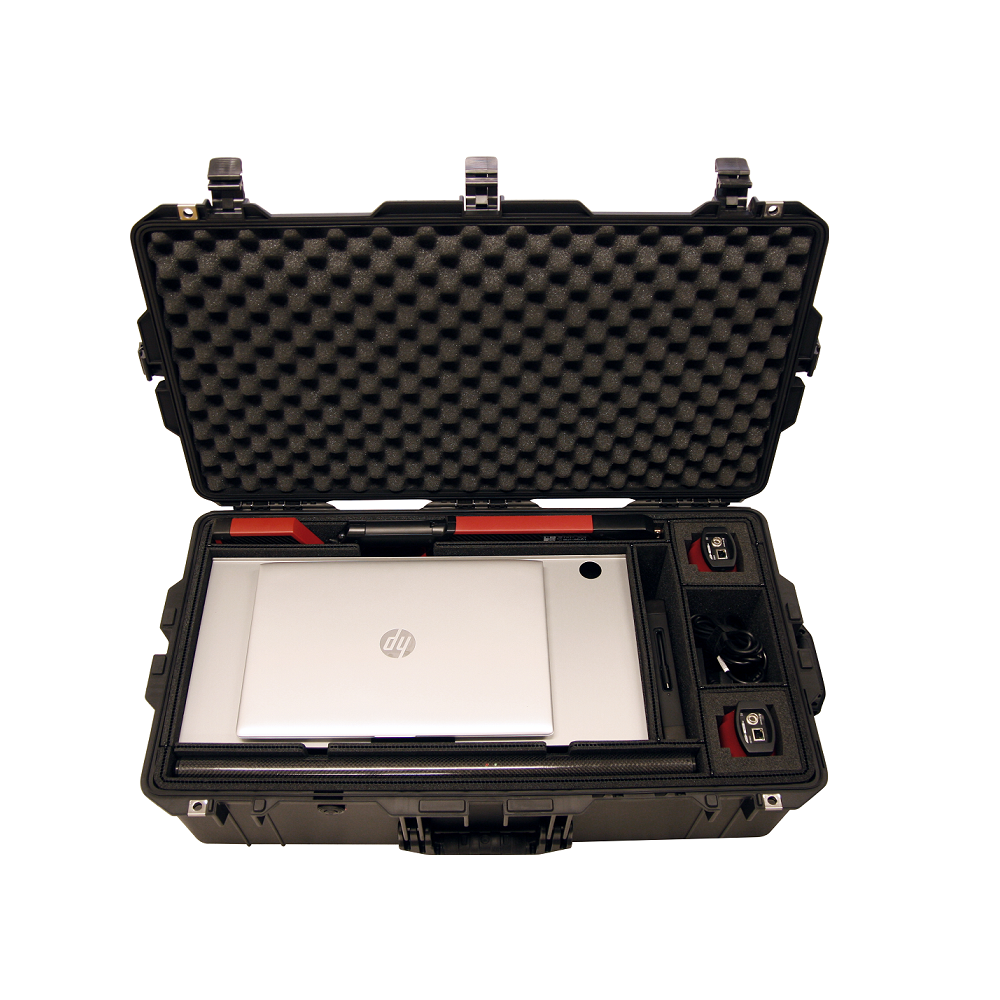

Case

Case

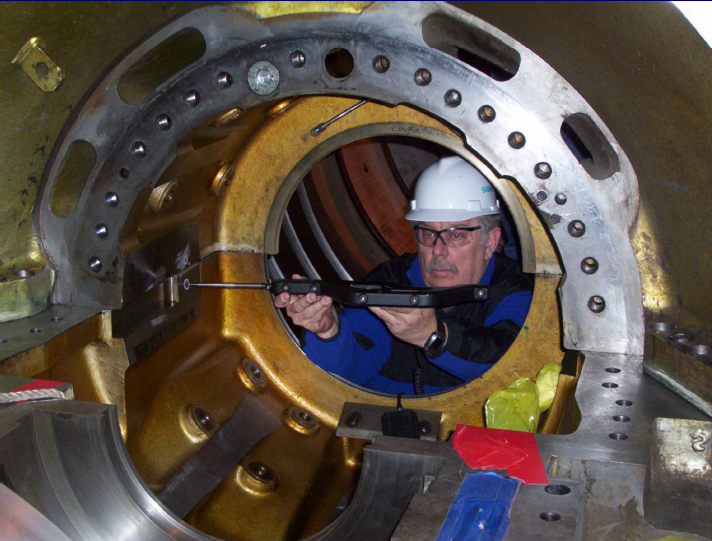

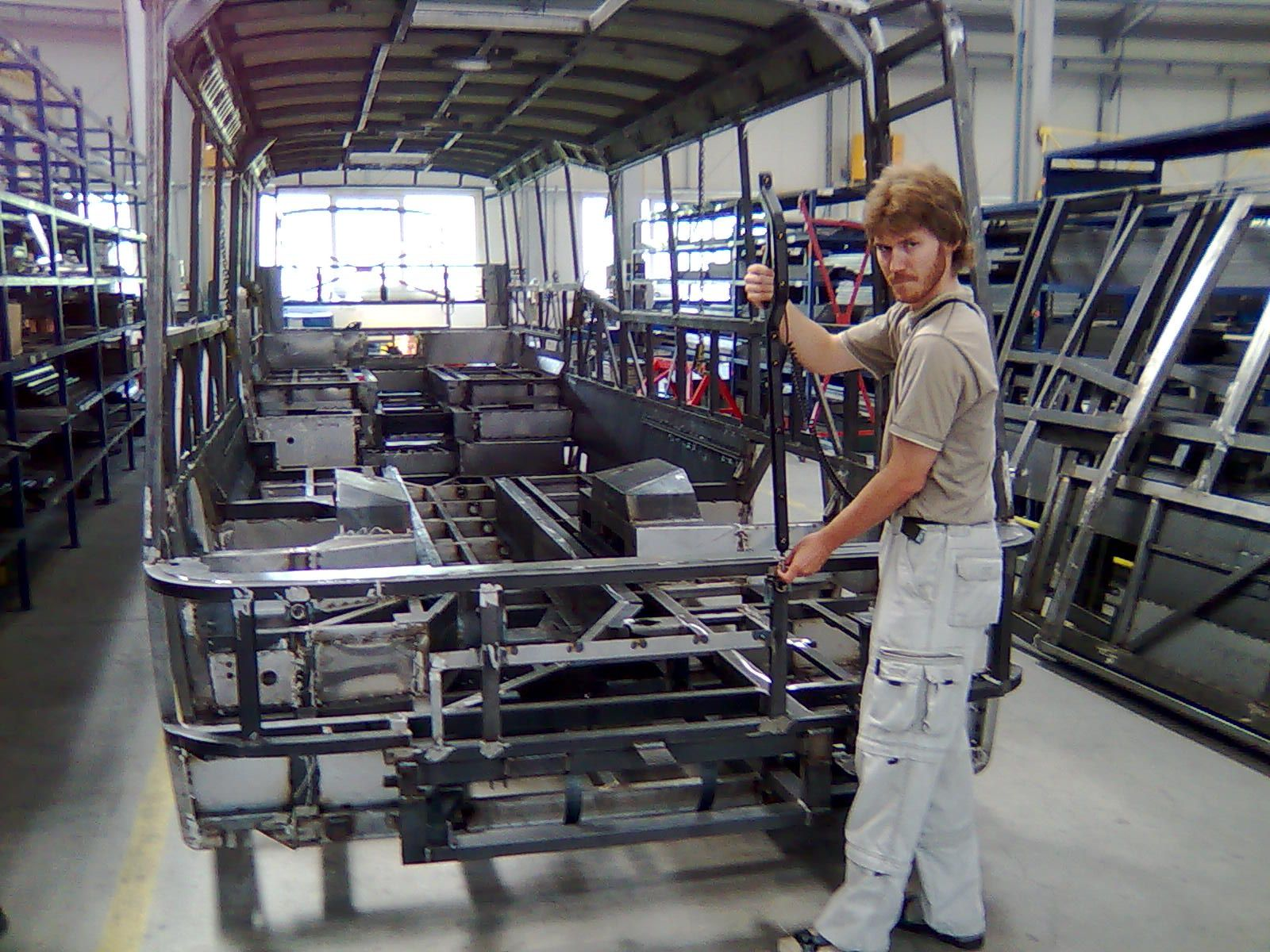

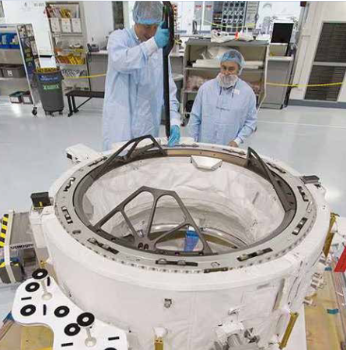

System applications

  • Prototyping
  • Tool and die inspection
  • Tube & pipe measurement
  • In-process inspection
  • On-machine inspection
  • Fixture inspection
  • As built documentation
  • Large assembly measurement
  • Assembly alignment
  • Excess material verification in casting/forging
  • On-machine alignment of parts for milling/machining
  • Tool building
  • Reverse engineering

Technical specifications

SOLO
Range [m] 1,5-25
Measurement Volume [m3] 2000
Accuracy – small volume 3D  (volume up to 1,5 x 1,5 x 1,5 m) [mm] ± 0,12
Accuracy – casting volume 3D (volume up to 3 x 3 x 3 m) [mm] ± 0,20
Accuracy Profile Measurements [mm] 5 m from camera ± 0,16
10 metrů from camera  ± 0,21
20 metrů from camera  ± 0,43

Accuracy Parallelism (parallelism between 2 planes, 1000 mm size)

 0,0033°
Accuracy Planerity (planarity of single plane 2x2m2) [mm] ± 0,06
