Benefits of device

  • Handheld and portable 3D optical CMM
  • Two cameras for more accurate measurement
  • Compact and portable system
  • Wide range of applications
  • Comparison geometry with CAD data
  • Possible to use each camera separately

Description

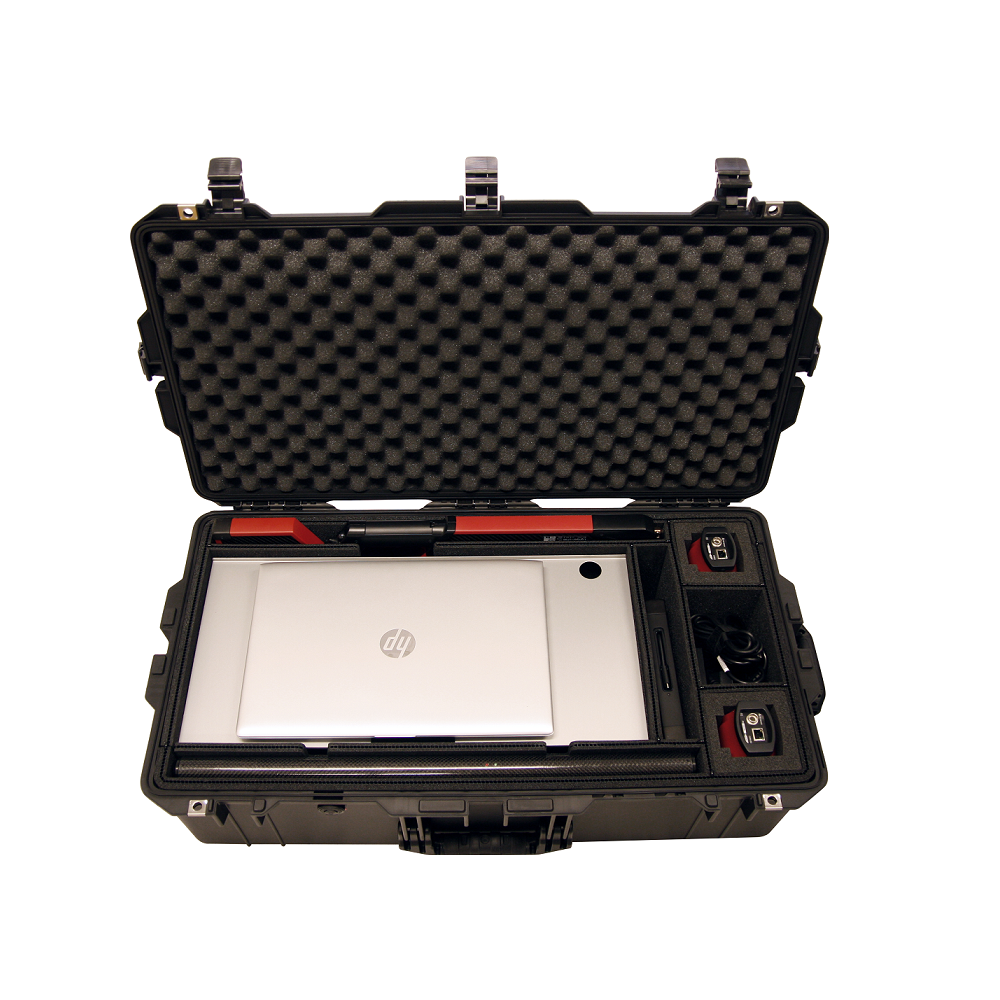

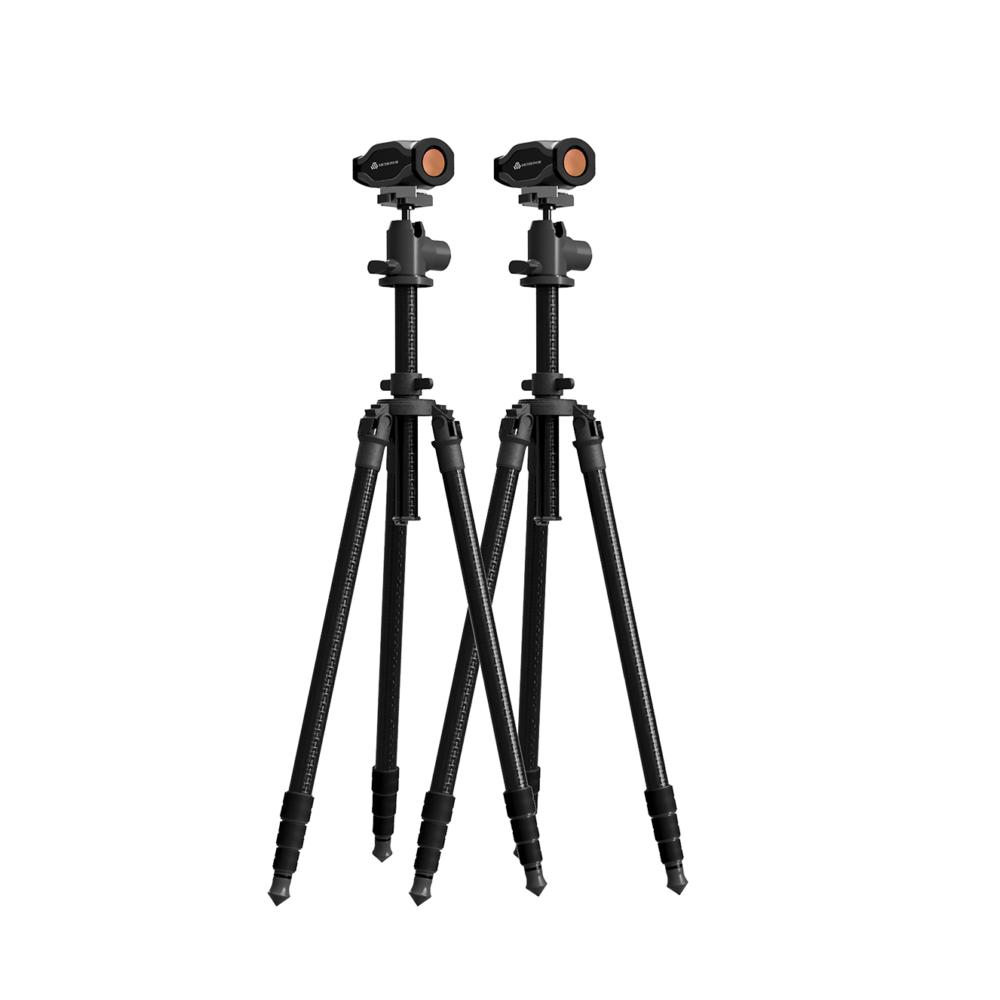

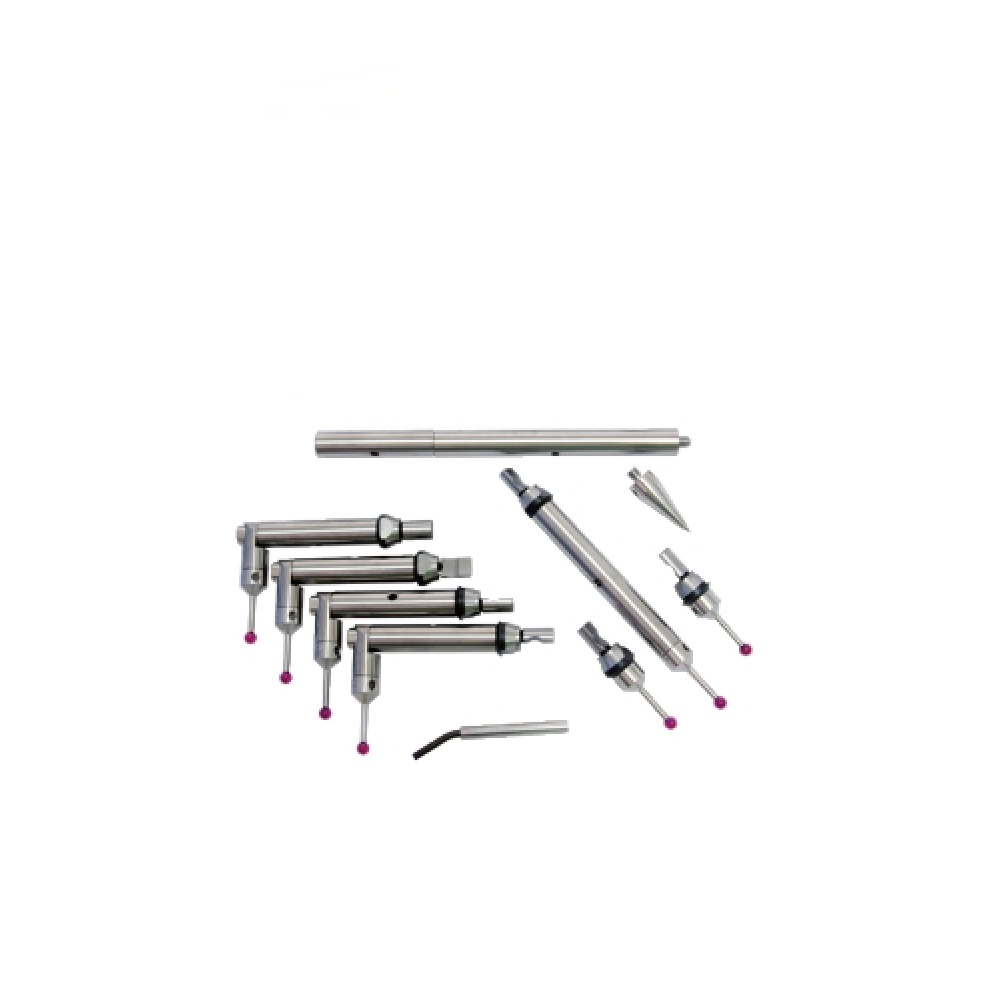

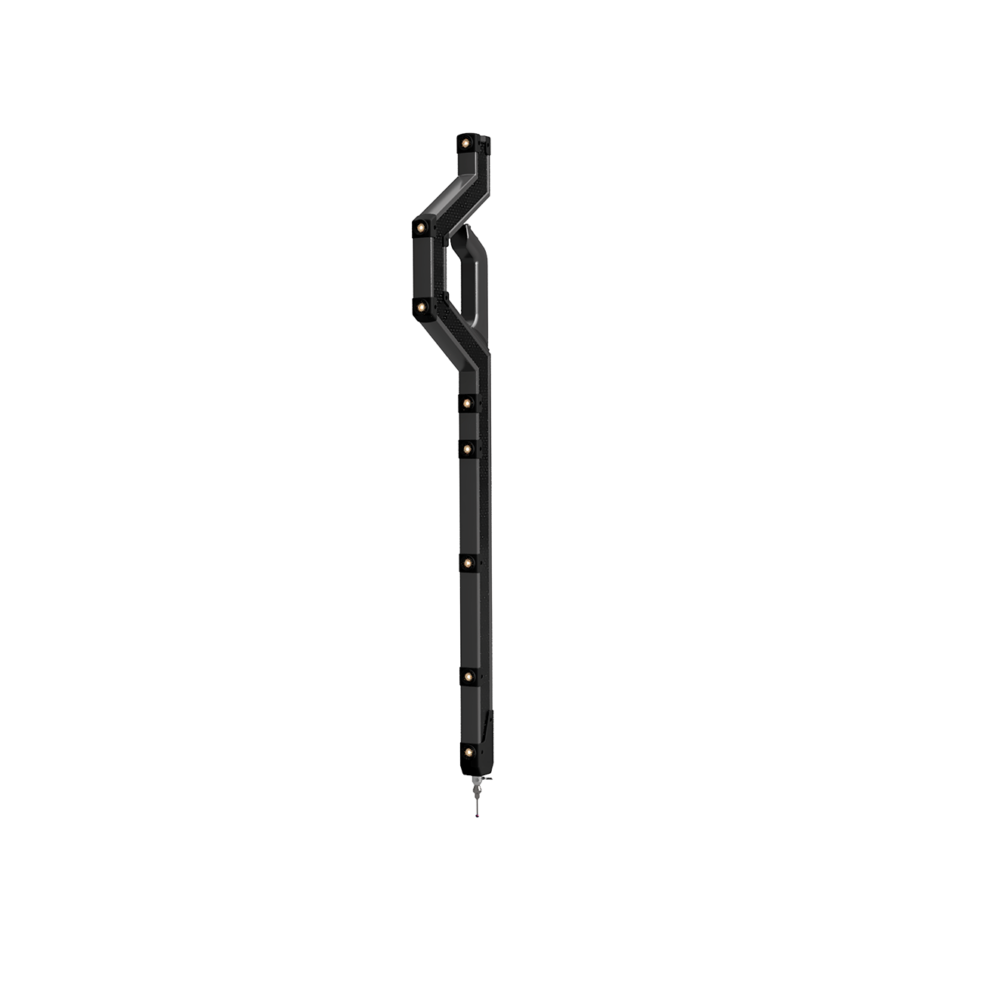

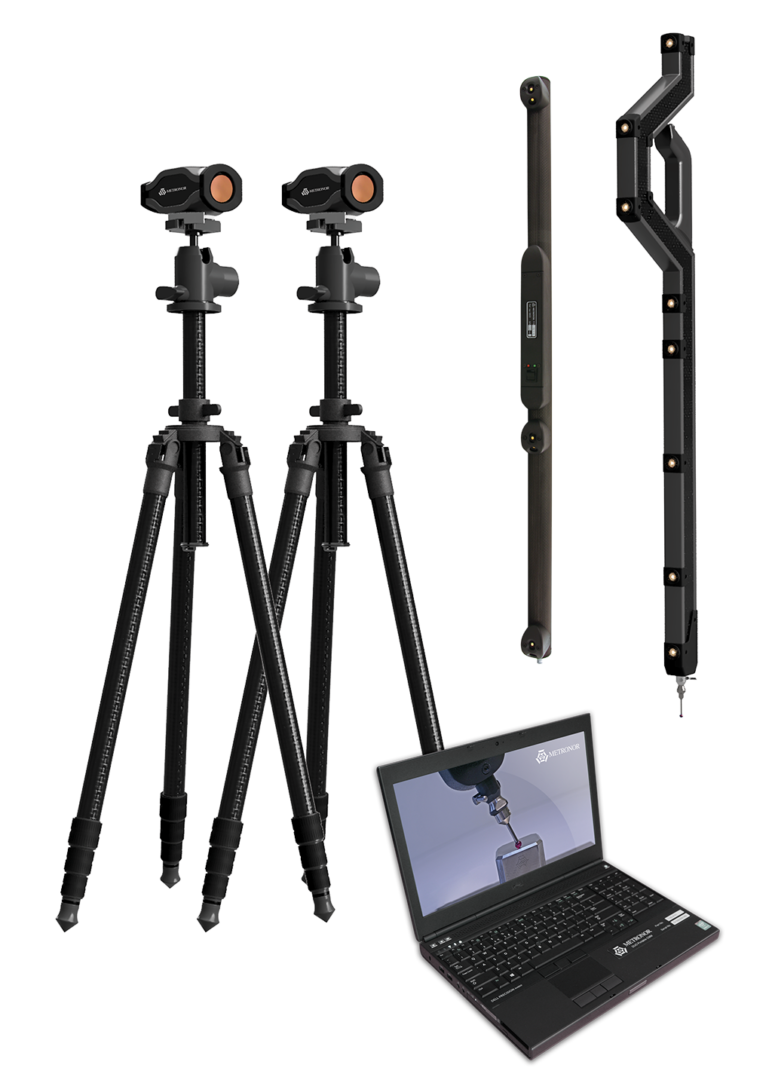

Metronor DUO Probe offers the highest measurement accuracy and the widest range of applications, by using two separate cameras at the same time.

With this portable measurement system it is possible to take probing points in a large measurement volume as well as to track any number of individual targets – e.g. to track multiple targets relative to each other, or to determine the deformation of structures.

The system can also be operated as a SOLO Probe system by simply unplugging one of the cameras. Accuracy, versatility and portability address all your geometry-related issues.


System applications

  • Jig-less tooling
  • Reverse engineering
  • Prototyping
  • As-built documentation
  • Tool and die inspection
  • In-process inspection
  • On-machine inspection
  • Fixture inspection
  • Deformation analysis
  • Large assembly measurement
  • Assembly alignment – in position and orientation
  • Excess material verification in casting/forging
  • On-machine alignment of parts for milling/ machining
  • Process repeatability verification
  • Root cause analysis – check tool, parts, variation and interference in single session
  • Tool building
  • Tool certification

Technical specifications

DUO
Measurement Capacity 1,5-15 m
3D Measurement accuracy* ± (0,02 + L/70000) mm
Measuring specific dimensions (perpendicularity, flatness, concentricity) ± 0,04 mm

*for any distance of two points in the working space of L dimension (m)

×
