FlexPoint

FlexPoint

Benefits of device

  • 3D coordinate measuring system
  • Uses tilting head PH10 equipped with sensors
  • Without the downtime of exchanging sensors
  • The software enable work with 3D model
  • Graphical results with evaluation of GD&T
  • Air bearings on all axes and active temperature compensation

Description

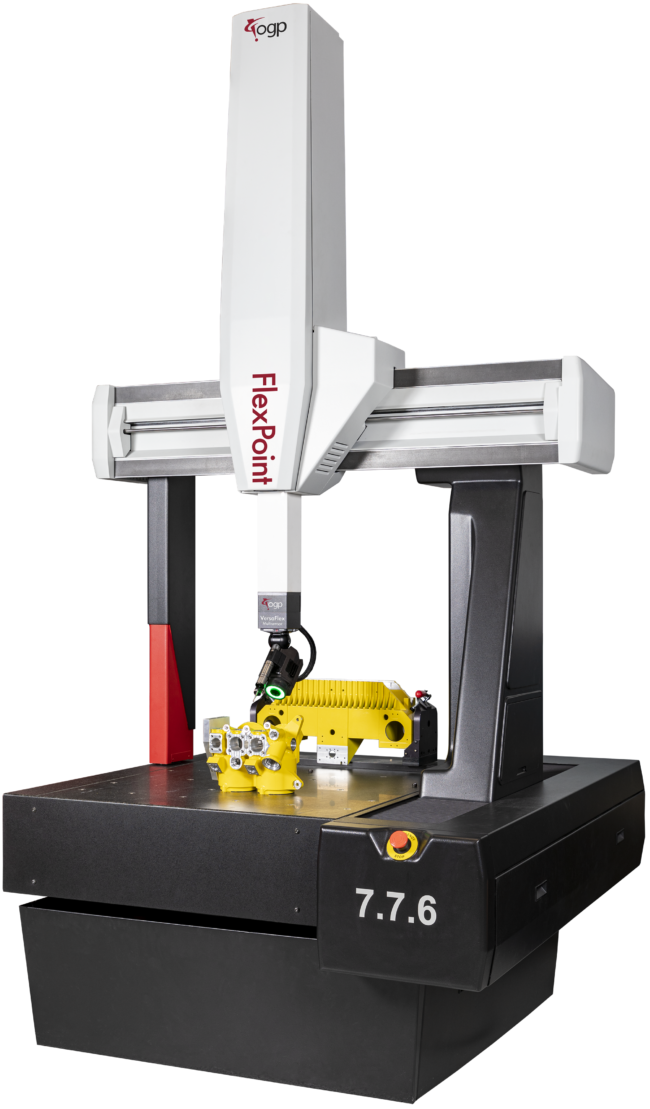

FlexPoint™ is the new generation of multisensor coordinate measuring machines from OGP®. FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems.

FlexPoint systems are available in sizes from 7.7.6 to 12.30.10 and feature VersaFlex – the patented sensor array offering up to three simultaneously available sensors on an articulating head. Measure parts with trusted scanning probe, telecentric optics, and 1 μm accuracy TeleStar interferometric laser – without the downtime of exchanging sensors and constantly recalibrating.

Having all sensors available for immediate use eliminates the need for time consuming tool changes. CAD programmable articulation of the VersaFlex™ creates optimum positioning and alignment of all sensors. Parts normally requiring multiple machines for complete inspection, are efficiently measured on the FlexPoint, improving accuracy and speed. The high speed, air bearing, bridge transport employs active thermal compensation and is well suited to the factory floor.


Technical specifications

FLEXPOINT Series 7 Series 9 Series 12
XY Machine Range [mm] 700 x 700 (1100) (1500) 900 x 1200 (1600) (2000) 1200 x 1500 (2000) (3000)
Z Machine Range [mm] 600 800  1000
Length measurement with SP25 [µm] 2,4+3L/1000 2,5+3L/1000 3+3L/1000
Scanning mode form error SP25 [µm] 3,6 3,9 4,1
Probing size error TeleStar [µm] 3,5 3,5 3,5
Optical measurement error [µm] 3 3 3
Maximum workpiece weight [kg] 500 (800) (1000) 1200 (1500) (1800) 2000 (2500) (3000)
Optional sensors TTL, DRS, Rainbow, Telestar

*L is the measured length in millimeters Accuracy depends on the choice of sensor and environment conditions.


Software

ZONE3

Advanced control and evaluation software for working with OGP measuring systems. Software with a modern interface and wide range of implemented functions, including working with a 3D CAD model and with the possibility of operator view, where users with only minimal training can securely launch and run programs.

  • Manage all types of sensors in the same software program
  • Automatically generated scanning trajectory to make it easier to create a measuring program
  • Program optimization based on position on the machine, scan sensor and zoom
  • ISO and ASME evaluation
  • Evaluation of advanced elements – screw threads, gears, roughness
  • Advanced work with variables
  • Supports all standard CAD model format including PMI



Versions:

Express – contains all characteristics, commonly used scanning tools, basic geometric tolerances, and 2D model support

Prime – contains all Express properties as well as advanced scanning tools, advanced geometric tolerances,conditions and cycles, 3D models, and customizing protocol headers

Pro – contains all Express and Prime properties as well as screw thread and gear assessment, PMI (model which carries data about dimensional geometrical tolerances) support, semiautomatic creation of programs using 3D models

Offline – version for creating programs without a measurement machine Contains all Pro functions

ZONE3 is standard on FUSIONFlexPointSmartScope Flash & CNCSmartScope VantageSmartscope SPSmartscope ZIPLazer and available on SNAP.


Product Video

×

Download Datasheet
