SmartScope Flash & CNC

SmartScope Flash & CNC

Benefits of device

  • Fast 3D Multisensor measuring system
  • Measuring all types of parts made of a variety of materials
  • Wide range of sizes up to 1500 x 2000 mm
  • Multisensor measurement (optics, touch, laser
  • Suitable for serial and individual measurement
  • The software enable work with 3D model

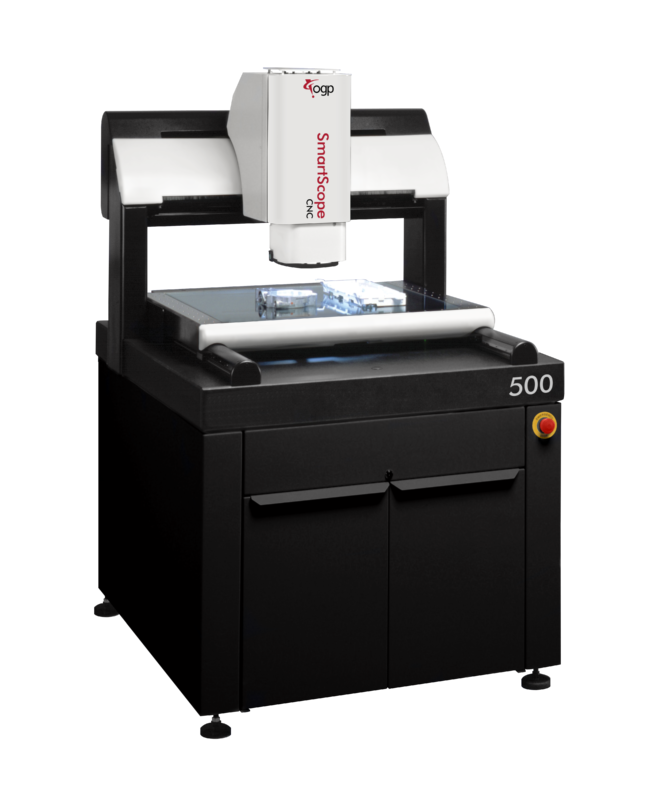

SmartScope® Flash & CNC 3D Multisensor Measurement Systems are versatile “all-in-one” multisensor coordinate measuring systems built to handle a wide variety of measurement tasks. The Flash product line offers the largest range of XYZ machine travels, from 200 x 200 x 150 mm to 650 x 660 x 400 mm, as well as models with expansive XY travels up to 1500 x 2000 mm, to easily accommodate very large parts.

A 12:1 zoom metrology lens features patented AccuCentric® that auto-compensates itself after every magnification change. Flash offers a range of innovative illumination sources for video measurements. SmartRing™ light is standard for the ultimate flexibility in surface illumination. All LED illumination including backlight, ring light and coaxial surface light-and an optional grid protector for focusing on low contrast images.

SmartScope Flash can be configured as an economical yet capable multisensor metrology system, with numerous combinations of touch probes, scanning probes, micro-probes, and lasers. ZONE3® 3D CAD-based metrology software makes every Flash model a powerful video measuring system.

SmartScope Flash systems feature an ideal price-to-performance ratio and are extremely popular, with thousands in service worldwide. SmartScope Flash systems are the best choice in automatic general-purpose, coordinate measuring with multisensor dimensional measurement.

System applications

  • Engineering - Measuring machined parts, cast-forged parts, welded parts and extruded parts of different shapes and sizes.
  • Automotive industry - OGP multi-sensor measurement systems offer the CAD integration, throughput and shop floor reliability to enable rapid innovation year after year.
  • Plastics - It’s a real challenge to effectively manage quality control in plastics manufacturing. Automated, non-contact video-based measuring systems from OGP allows for reliable, fast and effective measurement.
  • EnergyOne area of renewable energy that is seeing tremendous growth is Solar. The manufacturing of solar panels requires extremely precise measurements.
  • Aerospace, chemical industry, innovation and development...

Technical specifications

Flash CNC 200 300 500 635 670 1500 1550 1552
XY Measurement Capacity [mm] 200 x 200 300 x 300 500 x 450 (610) 635 x 635 (850) 650 x 660 900 x 1500 1250 x 1500 1500 x 1500
Z Measurement Capacity [mm] 150 250 200 (300) 200 200 (300, 400) 200 200 200

XY Accuracy [µm]

2,0+6L/1000 1,8+5L/1000 2,5+5L/1000 3,0+5L/1000 2,0+5L/1000 5,0+6L/1000 5,0+6L/1000 8,0+6L/1000
Z Accuracy [µm] (optical measurement) 3,5+6L/1000 3,4+5L/1000 3,0+8L/1000 3,0+5L/1000 3,0+8L/1000 3,0+8L/1000 3,0+8L/1000 3,0+8L/1000
Sensor resolution [µm] 0,1 0,1 0,1 0,1 0,1 0,1 0,1 0,1
Width x depth [mm] 600 x 860 850 x 870 1050 x 1200 (1310) 1315 x 1500 (1775) 1560 x 1830 1680 x 2290 1905 x 2540 (2845, 3048) 2160 x 2540 (2845, 3048)
Height [mm] 730 895 1580 (1980, 2180) 1575 1550 (1760, 2160) 1625 1625 1625
Weight [kg] 100 158 960 1310 1800 2590 5460 6380
Load capacity [kg] 16 30 65 50 130 100 100 100
Optional touch sensors TP20/200, FP TP20/200, SP25, FP TP20/200, SP25, FP TP20/200, SP25, FP TP20/200, SP25, FP TP20/200 TP20/200 TP20/200
Optional laser sensors TTL TTL TTL, DRS, Rainbow TTL, DRS, Rainbow TTL, DRS, Rainbow TTL, DRS TTL, DRS TTL, DRS

*L is the measured length in millimeters Accuracy depends on the choice of sensor and environment conditions.



Advanced control and evaluation software for working with OGP measuring systems. Software with a modern interface and wide range of implemented functions, including working with a 3D CAD model and with the possibility of operator view, where users with only minimal training can securely launch and run programs.

  • Manage all types of sensors in the same software program
  • Automatically generated scanning trajectory to make it easier to create a measuring program
  • Program optimization based on position on the machine, scan sensor and zoom
  • ISO and ASME evaluation
  • Evaluation of advanced elements – screw threads, gears, roughness
  • Advanced work with variables
  • Supports all standard CAD model format including PMI



Express – contains all characteristics, commonly used scanning tools, basic geometric tolerances, and 2D model support

Prime – contains all Express properties as well as advanced scanning tools, advanced geometric tolerances,conditions and cycles, 3D models, and customizing protocol headers

Pro – contains all Express and Prime properties as well as screw thread and gear assessment, PMI (model which carries data about dimensional geometrical tolerances) support, semiautomatic creation of programs using 3D models

Offline – version for creating programs without a measurement machine Contains all Pro functions

ZONE3 is standard on FUSIONFlexPointSmartScope Flash & CNCSmartScope VantageSmartscope SPSmartscope ZIPLazer and available on SNAP.

Product Video


Download Datasheet
